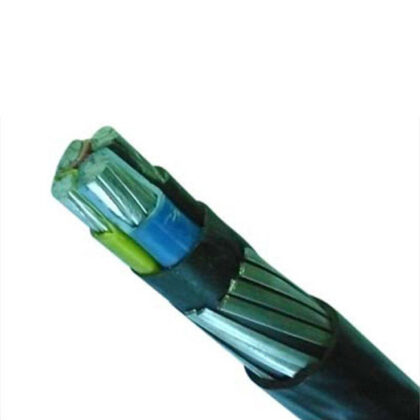

Polycab Armoured Aluminum Cables - Size:10 sq mm, Core:4 Core

Polycab Armoured Aluminum Cables – Size:10 sq mm, Core:4 Core

Original price was: ₹258.00.Current price is: ₹88.00.

Brand:Polycab Product Category:Aluminium Power Cable Size:10 sq mm Core:4 Core Conductor Material:Aluminium Colour:Black Overall Diameter (Strip/Wire):21.8mm Current Rating (A):57 Amp Thickness of PVC Insulation:0.7mm Min.thickness of pvc inner sheath:0.3mm Nominal Jimensions of Armoui (Strip / Wire):1.4mm Min. Thickness Of PVC Outer Sheath (Strip / Wire):1.40mm Max DC Resistance ohm:3.08 Ohm Max. AC Resistance ohm:3.94 Ohm […]

10 in stock

Category: , ,

Description

Brand:Polycab

Product Category:Aluminium Power Cable

Size:10 sq mm

Core:4 Core

Conductor Material:Aluminium

Colour:Black

Overall Diameter (Strip/Wire):21.8mm

Current Rating (A):57 Amp

Thickness of PVC Insulation:0.7mm

Min.thickness of pvc inner sheath:0.3mm

Nominal Jimensions of Armoui (Strip / Wire):1.4mm

Min. Thickness Of PVC Outer Sheath (Strip / Wire):1.40mm

Max DC Resistance ohm:3.08 Ohm

Max. AC Resistance ohm:3.94 Ohm

Approx. Reactance at 50Hz Ohms/Km:0.0837

Capacitance mFd/Krr:0.31

Additional information

Dimensions 10 × 4 in
Brand

Polycab
